網格視圖(GridView)

網格視圖(GridView)把來自列表適配器(ListAdapter)的項目顯示在一個二維的空間(滾動格)上.

(可以比較另一種視圖, 畫廊(Gallery)).

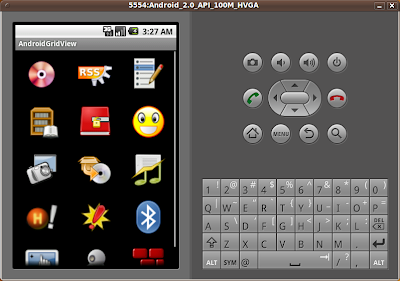

這次實現一個GridView, 顯示/res內的drawable物件.



先創建一個文件夾/res/drawable, 並複製一些PNG圖形到/res/drawable內. 我使用的文件名為a01.png~a15.png.

修改main.xml, 使用GridView.

<?xml version="1.0" encoding="utf-8"?>
<GridView xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/gridview"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:numColumns="auto_fit"
android:verticalSpacing="10dp"
android:horizontalSpacing="10dp"
android:columnWidth="90dp"
android:stretchMode="columnWidth"
android:gravity="center"
/>

創建網格視圖(GridView), 需要擴展BaseAdapter創建一個新類ImageAdapter, 並需重寫一些方法, 詳細請參考代碼內容及另一篇文章getView() 和 convertView.

package com.AndroidGridView;

import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.GridView;
import android.widget.ImageView;

public class AndroidGridView extends Activity {
   /** Called when the activity is first created. */
   @Override
   public void onCreate(Bundle savedInstanceState) {
       super.onCreate(savedInstanceState);
       setContentView(R.layout.main);

       GridView gridview = (GridView)findViewById(R.id.gridview);
       gridview.setAdapter(new ImageAdapter(this));
   }

   public class ImageAdapter extends BaseAdapter{
    private Context context;

    private Integer[] mThumbIds = {
      R.drawable.a01,
      R.drawable.a02,
      R.drawable.a03,
      R.drawable.a04,
      R.drawable.a05,
      R.drawable.a06,
      R.drawable.a07,
      R.drawable.a08,
      R.drawable.a09,
      R.drawable.a10,
      R.drawable.a11,
      R.drawable.a12,
      R.drawable.a13,
      R.drawable.a14,
      R.drawable.a15,
    };

    public ImageAdapter(Context c){
     context = c;
    }

 @Override
 public int getCount() {
  // TODO Auto-generated method stub
  return mThumbIds.length;
 }

 @Override
 public Object getItem(int position) {
  // TODO Auto-generated method stub
  return mThumbIds[position];
 }

 @Override
 public long getItemId(int position) {
  // TODO Auto-generated method stub
  return position;
 }

 @Override
 public View getView(int position, View convertView, ViewGroup parent) {
  // TODO Auto-generated method stub
        ImageView imageView;
        if (convertView == null) {
         // if it's not recycled, initialize some attributes
            imageView = new ImageView(context);
            imageView.setLayoutParams(new GridView.LayoutParams(85, 85));
            imageView.setScaleType(ImageView.ScaleType.CENTER_CROP);
            imageView.setPadding(8, 8, 8, 8);
        } else {
            imageView = (ImageView) convertView;
        }

        imageView.setImageResource(mThumbIds[position]);
        return imageView;
 }


   }
}
